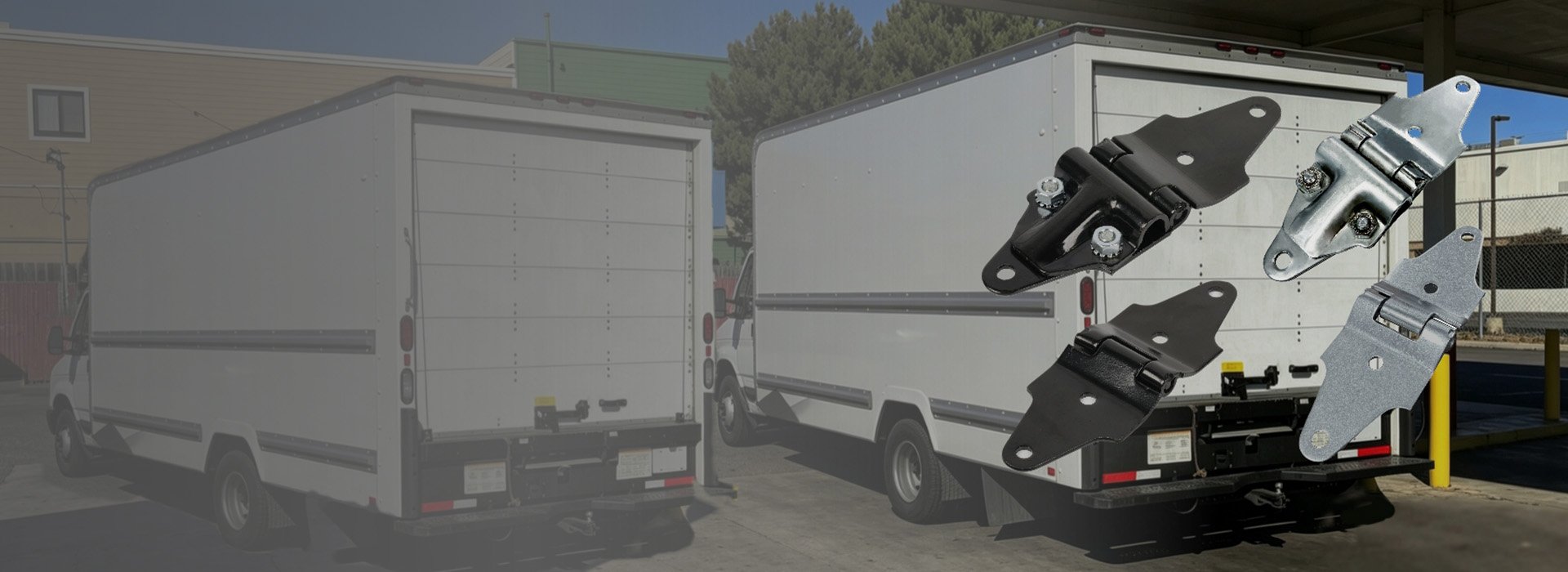

whiting box truck roll up door hinge and roller kit

Whiting Style Door Hinge Manufacturer

2.5 mm steel and stainless steel hinges for box truck and trailer roll-up doors, available for replacement, new door production and wholesale supply.

  • Complete End & Center Hinge Range
  • 2.5 mm Steel & Stainless Steel
  • Black E-Coat & Corrosion-Resistant Options
  • Custom Production & Stable Bulk Supply



  • box truck roll up door whiting style door parts gemax
  • whiting style box truck roll up door parts hardware

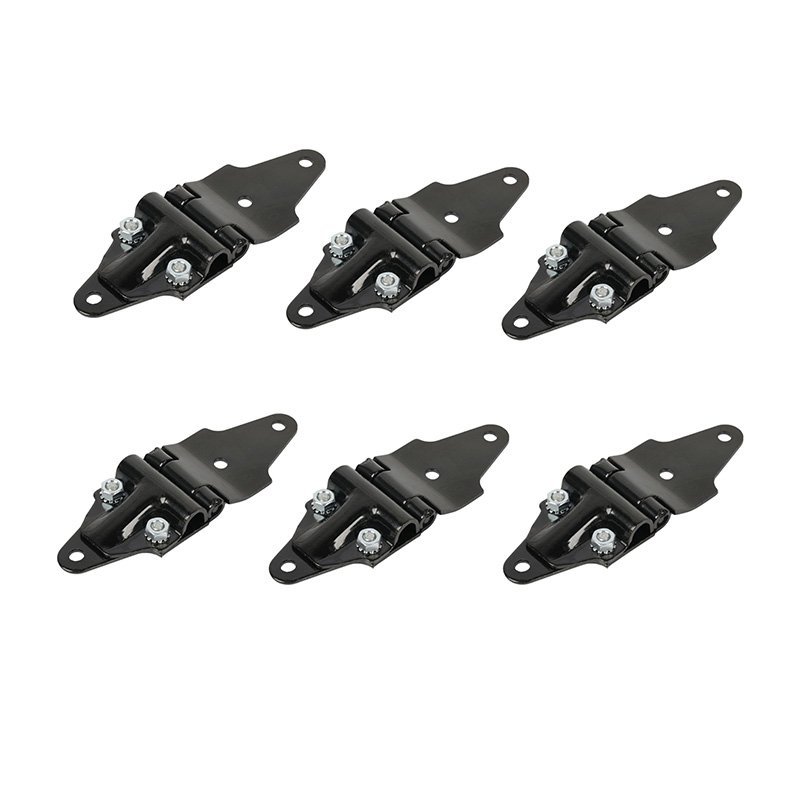

  • whiting overhead truck roll up door hinge gemax
  • whiting style box truck door end hinges and center hinges

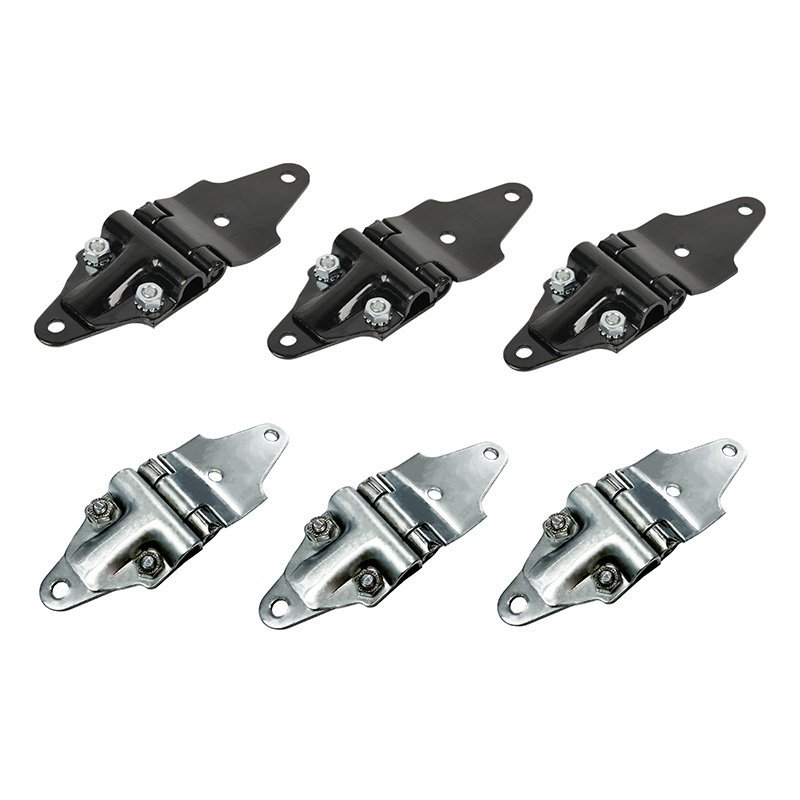

  • whiting box truck roll up door hinge gemax
  • box truck roll up door whiting style door parts gemax
  • whiting style box truck roll up door parts hardware
  • whiting overhead truck roll up door hinge gemax
  • whiting style box truck door end hinges and center hinges
  • whiting box truck roll up door hinge gemax

Why Choose Gemax Whiting Style Door Hinges

  • Heavy duty steel material for frequent heavy use
  • Smooth operation, no noise when the door opens and closes
  • Standard Whiting style door, easy to replace and install
  • Anti-rust surface, works in different weather conditions
  • Stable quality & lead time
  • OEM size and design available

Find Your Whiting Style Door Hinge for Box Truck Roll Up Doors

Choosing the right Whiting Style Door Hinge helps your box truck or trailer roll-up door move smoothly and stay aligned during frequent use. You can select a complete roller end hinge assembly to support the rollers at the outer edges, or a center hinge to connect adjoining door panels as they travel around the track. Gemax offers BW1209 and BW15 in 2.5 mm steel with a black E-coat finish, plus BW1209SS and BW15SS in 2.5 mm stainless steel for greater corrosion resistance. These options serve replacement, repair, and new door production needs, with custom specifications available for volume orders.

Send Gemax your required model, dimensions, drawing, or sample, and let us help you source the right hinge for your door system.

Various Whiting Style Door Hinges Options

Choosing the right end hinges and center hinges for your Whiting style doors based on your budget, weather, market conditions and other factors.

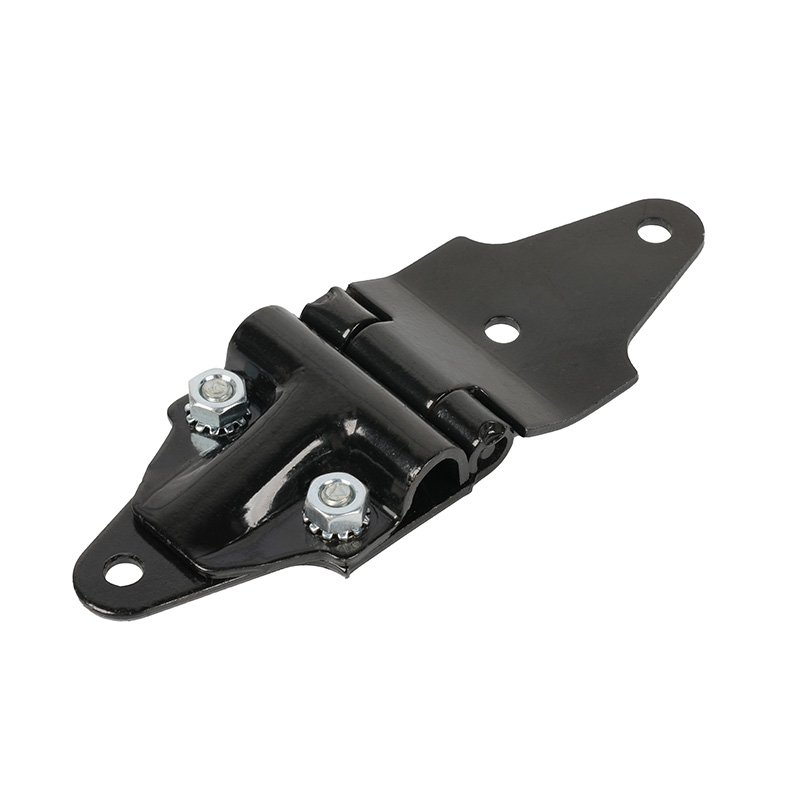

whiting style box truck door 1209 end hinge gemax
Roller End Hinge Assembly Complete - Steel

Model: BW-1209

Complete steel end hinge guides roller movement and supports outer door panels.

whiting style box truck roll up door 1209 roller end hinge stainless
Roller End Hinge Assembly Complete - Stainless Steel

Model: BW-1209-SS

Stainless end hinge assembly guides rollers while resisting corrosion during service.

whiting style box truck roll up door 15 center hinge
Center Hinge - Steel

Model: BW-15

Steel center hinge connects adjoining panels for stable, flexible door movement.

whiting style box truck door 15 center hinge stainless
Center Hinge - Stainless Steel

Model: BW-15-SS

Stainless center hinge connects panels while providing durable corrosion resistance.

Whiting Style Door Hinge Design Features

Designed for the working points that matter on box truck roll-up doors, these hinge features simplify roller servicing, support controlled panel movement and make individual hinge replacement more efficient.

removable roller cover
Removable Roller Cover

The removable cover on the complete roller end hinge assembly lets you access and replace the roller without removing the entire hinge body from the door panel.

complete end hinge assembly
Complete End Hinge Assembly

The BW1209 and BW1209SS combine the end hinge body, removable roller cover and retaining hardware in one matched assembly, reducing the need to source separate service components.

secure cover retention
Secure Cover Retention

Two locking fasteners hold the roller cover securely in position, helping the assembly remain stable through repeated door-opening and closing cycles.

contoured center hinge profile
Contoured Center Hinge Profile

The contoured shape of the BW15 and BW15SS center hinges helps reduce protruding edges that could catch or come into contact with cargo.

controlled panel articulation
Controlled Panel Articulation

The formed hinge joint allows adjoining door panels to pivot as the door transitions from the vertical track into the curved track section.



targeted hinge replacement
Targeted Hinge Replacement

You can replace the roller-supporting end hinge assembly or the panel-connecting center hinge according to the damaged position, without replacing unrelated door hardware.

Durable Whiting Style Door Hinges

Gemax Whiting style door hinges are made from steel or stainless steel; they are not made from thin or light material. The standard thickness can reach around 2.5mm, which gives the hinge better strength and longer life. In real use on box trucks, the door opens and closes many times every day, so strength really matters. With thicker material, the hinge is not easy to bend or deform, even after long-term use. This helps keep the door working smoothly and safely.

At Gemax, providing high-quality products is key to building long-term partnerships with our valued clients.

box truck roll up door whiting style door hinges manufacturer supplier

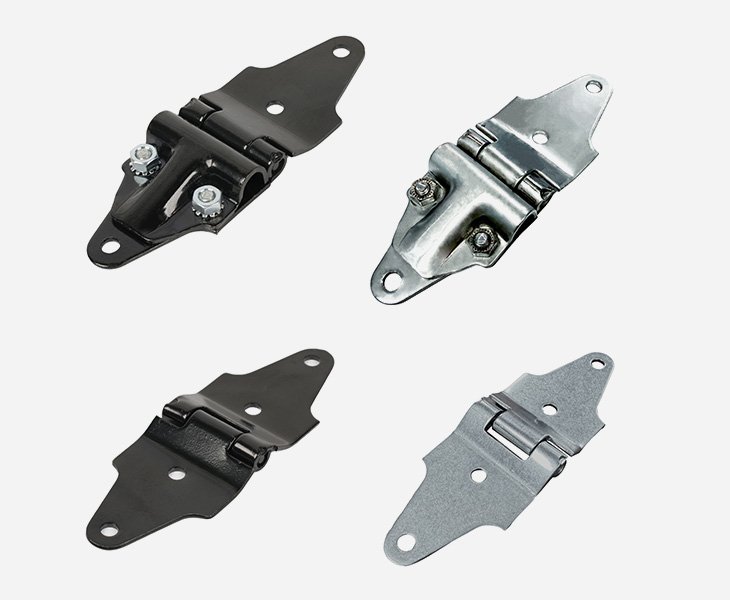

whiting style tralier door hinge gemax

Custom Finishes & Rust Protection

For surface treatment, most customers choose E-coat finish, which is one of the most reliable ways to prevent rust. The coating can go deep into small gaps and corners, not just the surface, so the whole hinge is well protected. This is very important for truck doors used outdoors. We also offer other finishes based on your needs, budget, weather, market prefect and more.

Gemax team will provide the most professional guidance and solution according to your different requirements for your Whiting style doors.

Standard Fit & Easy Replacement

Our Whiting style door hinges are made based on common standard sizes, so they can match well with most Whiting style roll up doors. This makes replacement much easier when old hinges are worn out or damaged. You don’t need to worry about mismatch or extra modification.

If you have special size requirements, we can also support custom production based on your sample or drawing. Feel free to contact the Gemax team anytime for more product information and services!

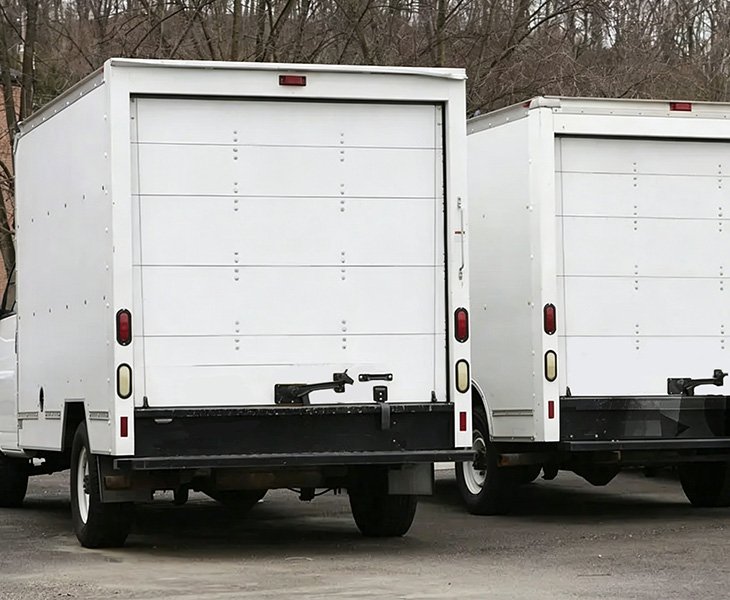

whiting style box truck door hinges replacement gemax
trailer box truck roll up door parts hinge gemax

Export Experience & Safe Packing

We have experience exporting box truck roll up door parts to different countries, so we understand the need for safe packing and smooth delivery. We’ve done tons of tests on packaging, kept tweaking and fixing issues along the way, and finally landed on the best packaging solution. Every hinge is carefully packed so it won’t get damaged in transit.

We also help make the loading process clear and simple. With stable supply and reliable packing, you can receive your goods in good condition and ready to use. If you are willing to trust us, we will definitely do our utmost to protect your products and achieve long-term and stable cooperation.

Whiting Style Door Hinge Technical Resources

catalog
Product Catalog

Review the available Whiting Style Door Hinge models, materials and related box truck door parts.

drawing
Dimension Drawing

Request the BW1209, BW1209SS, BW15 or BW15SS drawing for dimensional review.

packing
Datasheet and Packing

Ask for model specifications, package quantity, carton details and available order information.

Whiting Style Door Hinge Applications

Choose the right hinge configuration for your box truck, trailer or delivery vehicle to support stable panel movement and reliable day-to-day door operation.

box truck roll up door parts hardware hinge roller
Box Truck Roll Up Doors

Use these hinges on your box truck roll up door to connect adjoining panels, support roller movement and help the door operate smoothly during frequent loading and delivery cycles.

whiting style trailer dry van overhead doors
Trailer & Dry Van Overhead Doors

For your trailer or dry van overhead door, the 2.5 mm hinge construction supports stable panel movement, while steel and stainless steel options meet different operating conditions.

box truck roll up door replacement installation
Replacement & New Door Production

Whether you are replacing worn door hardware or manufacturing a new door, you can select BW1209/BW1209SS end hinges and BW15/BW15SS center hinges to suit your project.

box truck roll up door parts

Professional Whiting Style Door Hinge Manufacturer

High-quality raw materials, continuously upgraded production lines, a strict QC team, and experienced technical engineers all guarantee stable quality of our Whiting style door hinges and satisfactory service.

With all these strengths, Gemax has grown into a professional manufacturer of Whiting style door hinges.

Whiting Style Door Hinge Selection Guide

Compare Gemax hinge models, materials and functions to select the right option for your box truck roll-up door project.

ModelTypeMaterialThicknessFinishPosition and Function
BW1209Complete Roller End Hinge AssemblySteel2.5 mmBlack E-coatInstalled at the panel ends to hold the rollers and guide the door along the track.
BW1209SSComplete Roller End Hinge AssemblyStainless Steel2.5 mmStainless Steel FinishProvides the same roller support and guiding function with increased corrosion resistance.
BW15Center HingeSteel2.5 mmBlack E-coatConnects adjoining door panels and allows them to articulate as the door moves around the curved track.
BW15SSCenter HingeStainless Steel2.5 mmStainless Steel FinishConnects adjoining panels while providing increased corrosion resistance.
FeatureWhiting Style End HingeWhiting Style Center Hinge
Installation PositionInstalled at the left and right ends of each door panel.Installed across the joint between adjoining door panels.
Main FunctionSupports the roller and helps guide the door along the track.Connects adjoining panels and allows them to articulate.
Roller ConnectionUsed as part of a complete roller end hinge assembly.Does not hold the door roller.
Door MovementHelps keep the roller properly guided during opening and closing.Allows the panels to move flexibly around the curved track.
StructureIncludes an end hinge structure designed to support the roller assembly.Uses a simpler hinge structure designed for panel-to-panel connection.
Selection BasisChoose it when you need roller support at the ends of the door panel.Choose it when you need to connect adjoining door panels.

What Our Partners Say

  • We started with a small sample order because the hinges from our previous supplier were not always consistent. The BW1209 and BW15 parts arrived well packed, and the mounting dimensions matched the samples we had approved. After our technicians installed the Gemax Whiting Style Door Hinge components on several box truck doors, the panels moved smoothly without extra adjustment. That gave us the confidence to place a larger order, and the clear lead-time updates also made inventory planning much easier.



    Mike

    Purchasing Manager, USA



    mike usa
  • Our customers operate vehicles in a humid environment, so corrosion resistance was an important part of our selection. We tested the BW1209SS and BW15SS stainless steel versions before adding them to our regular purchasing plan. The Gemax Whiting Style Door Hinge products gave us a suitable option for customers who wanted more corrosion resistance than standard coated steel. Gemax also kept the steel and stainless steel models clearly separated and labeled, which simplified receiving and warehouse management.



    Jack

    Product Manager, Canada

    jack canada
  • We repair box truck roll up doors for local fleet operators, and worn hinges are a common reason vehicles stay out of service. We first ordered a small batch of Gemax Whiting Style Door Hinge parts to check the fit. The BW1209 end hinges and BW15 center hinges matched the dimensions we confirmed and installed without extra modification. After replacement, the door panels tracked smoothly again. The clear model labeling also saved our technicians time, so we now keep several sets on hand for routine repair jobs.



    James

    Service Manager, UK

    james uk
Can I order small quantity for testing?

Yes, we provide sample service for testing before placing an order, which can help you learn our Whiting style door hinges better and better protect your interests.

How do you ensure Whiting style door hinges quality?

We have a strict quality inspection process and a professional QC team that carries out full-process testing, including the size, thickness, finish, weight and packaging of the hinges, to ensure the products you receive meet your requirements.

Can I use your hinges to replace old Whiting style door hinges?

Yes, our Whiting style door hinges are widely used as replacement parts for worn or damaged box truck door hinges. They fit most standard Whiting style roll up door systems and help bring the door back to smooth operation.

Do you keep stock for Whiting style door hinges?

For common types of Whiting style door hinges, we usually keep stock to support fast delivery. This is helpful for customers who need urgent replacement parts. For large orders, we can also arrange production quickly.

Can I buy different hinge types together?

Yes, you can order different types of Whiting style door hinges in one shipment, including center hinges and end hinges. This helps you get all needed box truck door parts together and makes installation easier.
